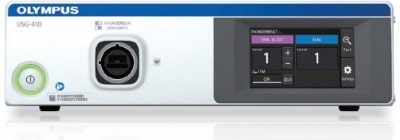

ULTRASONIC GENERATOR
USG-410
World's First*1 Combined Energy Generator
The USG-410 is the world's first*1 generator which activates both ultrasonic and bipolar energy simultaneously in a single unit, while maintaining the same 7mm reliable sealing and fast tissue-cutting capability as its legacy generators*2.
*1 As of November 2019.
*2 Ultrasonic Generator USG-400 and Electrosurgical Generator ESG-400
Stand-alone generator for THUNDERBEAT & SONICBEAT
Allows hospital to activate both THUNDERBEAT and SONICBEAT with a single generator.
34% Shorter Sealing Time
Up to 34% shorter sealing times compared to legacy generators.*3
Onsite Safety Verification with MAJ-2299
The USG-410 allows user to conduct electrical safety testing and output measurement.
Intelligent Tissue Monitoring
The unique Thermal Management technology helps to stop ultrasonic activation by detecting the tissue condition.
*3 Based on a benchtop test using vessels up to 2 mm comparing the SEAL mode's time of THUNDERBEAT Type S with USG-410 vs. Electrosurgical Generator ESG-400 and Ultrasonic Generator USG-400. (Both condition set under default level) (N=30, P<0.01)
USG-410 Specifications
| Power Supply | Voltage / fluctuation | 100-120/220-240 V AC/Within ±10% |
|---|---|---|
| Frequency / fluctuation | 50/60 Hz / Within 1 Hz | |
| Input | 350 VA | |
| Size | Dimensions | 375(W) x 106(H) x 360(D) mm |
| Weight | 9.0 kg | |
| Classification (medical electrical equipment) |
Type of protection against electric shock | Class I |
| Degree of protection against electric shock | CF type | |
| Degree of protection against explosion | The USG-410 should be kept away from flammable gases. | |
| Output | Applicable instrument | THUNDERBEAT, SONICBEAT |
| ON/OFF operation | Footswitch, Handswitch | |
| Output setting | Output setting and Intelligent Tissue Monitoring setting can be changed on the touch screen of USG-410. | |
| Frequency | 47.0 kHz | |
| GUI Language | 29 languages | English, Japanese, German, Chinese, French, Spanish, Italian, Portuguese, Danish, Swedish, Greek, Czech, Lithuanian, Finnish, Norwegian, Hungarian, Croatian, Slovenian, Dutch, Serbian, Polish, Russian, Romanian, Turkish, Estonian, Latvian, Slovak, Korean, Bulgarian |
TC-E410 Specifications
| Dimensions | 515(W) x 1160(H) x 620(D) mm |
|---|---|
| Weight | 55 kg unladen, with multiple socket-outlet |
| Load Capacity | 30 kg on each shelf (without tray) |
| Casters | 4 x Ø125 mm dia., with each brake on 2 casters |
USG-410 Ordering information
| USG-410 | ULTRASONIC BIPOLAR GENERATOR |
|---|
Option
| MAJ-2299 | Output Verification Adapter for USG-410 |
|---|---|
| MAJ-2412 | SONICBEAT Footswitch Connector |
| MAJ-1869 | Footswitch for SONICBEAT |
| MAJ-1870 | Footswitch for THUNDERBEAT |
| MAJ-1872 | Communication cable 10 m*4 |
| MAJ-1873 | Adapter for UHI-2/3 |
| TC-E410 | Energy Cart |
*4 Required for the automatic mist and smoke evacuation function.
Power cords provided by Olympus is recommended, please contact your local sales rep or your local Olympus office for further information.
Specifications, design and accessories are subject to change without any notice or obligation on the part of the manufacturer.
