THUNDERBEAT
Front-actuated Grip
Type S

Revolutionary Integrated Bipolar and
Ultrasonic Surgical Instrument with
Enhanced Safety

Contents start

EVOLVED FOR MORE SAFETY

At Olympus, we are committed to the pursuit of uncompromised safety and reliability. The THUNDERBEAT Front-actuated Grip Type S has been developed with new safety features besides the inherited advantages of its predecessor. Safety is further enhanced by the newly developed Intelligent Tissue Monitoring technology which uses sophisticated detection technology to control ultrasonic activation. These improvements deliver breakthrough THUNDERBEAT performance that facilitates seamless and efficient surgery.

  • Add to Watch List
  • Brochure

THUNDERBEAT Front-actuated Grip Type S

To meet the requirements of surgeons, the new THUNDERBEAT Front-actuated Grip Type S features a refined jaw, as well as insulation coating on the bottom and lateral surfaces of the probe, further enhancing the advantages of THUNDERBEAT.

Refined jaw design

  • The shape of the jaw has been redesigned for better alignment between the jaw and the probe, providing reliable durability under certain conditions
  • Refined jaw provides a visual indicator for optimal jaw loading of the tissue

Insulation coating

The bottom and lateral surfaces of the probe are coated with an advanced insulation material for stable sealing during perioperative bleeding management even when the probe is in contact with surrounding tissue / blood

Fine tip for precise dissection

Proprietary tip design supports precise dissection and reduced mist

Intelligent Tissue Monitoring

Intelligent Tissue Monitoring is the world's first safety assist technology that stops ultrasonic activation to prevent excessive temperature increase. It achieves this using intelligent monitoring technology that detects the small change in ultrasonic impedance that occurs once the tissue has been dissected.

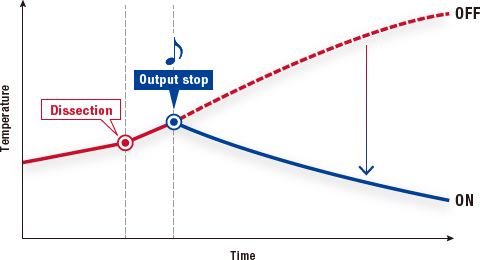

Reduction of Unintentional Temperature Increase by Intelligent Tissue Monitoring

Safety Assist function

Minimizes residual heat on the probe that can be caused by ultrasonic over-activation.
This leads to a decrease in the residual probe temperature by 26.9%, which consequently reduces the risk of accidental tissue damage.*
Minimizes PTFE pad wear that can be caused by ultrasonic over-activation.

*Data on file, Olympus Cooperation

USG-400 supports

  • THUNDERBEAT, Exclusively delivering both ultrasonic and bipolar energy for reliable vessel sealing and the fastest in class tissue cutting, when combined with ESG-400, electrosurgical generator.
  • SONICBEAT, Delivering ultrasonic energy for the simultaneous cut and coagulation of tissue.
ESG-400

ESG-400

The ESG-400 delivers Monopolar, Bipolar and Advanced Bipolar surgical energy.

Learn More
USG-400

USG-400

The USG-400 delivers Ultrasonic energy, and in conjunction with the ESG-400 delivers integrated Bipolar and Ultrasonic energy to the THUNDERBEAT handpiece.

Brochure

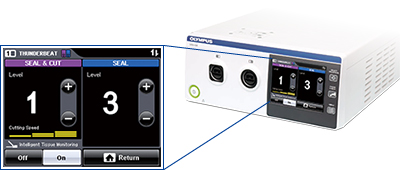

USG-400 Features and Benefits

  • Graphical User Interface for intuitive operation, ease of use, and rapid troubleshooting.
  • Instrument recognition and automatic application of default settings for ease of use.
  • Hand switch and foot switch activation options to meet each surgeon's individual preferences.
  • Automatic mist and smoke evacuation to maintain a clear laparoscopic view reducing delays associated with compromised visualization, when combined with UHI series insufflator.
  • A dedicated cart for transportation and storage.

Intelligent Tissue Monitoring

  • Intelligent Tissue Monitoring is the world's first safety assist technology that stops ultrasonic activation to prevent excessive temperature increase.
  • Minimizes residual heat on the probe that can be caused by ultrasonic over-activation.
  • Minimizes PTFE pad wear that can be caused by ultrasonic over-activation.
  • The function can be easily turned On/Off.

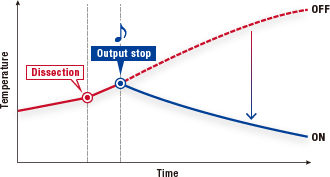

Reduction of Unintentional Temperature Increase by Intelligent Tissue Monitoring

Ordering Information

THUNDERBEAT GENERATORS AND ACCESSORIES

ESG-400 Electrosurgical generator
USG-400 Ultrasonic generator
TC-E400 Energy Cart
TD-TB400 Transducer for THUNDERBEAT
MAJ-1870 Footswitch for THUNDERBEAT
MAJ-1871 Communication cable - short
MAJ-1872* Communication cable - long
MAJ-1876 Docking fixture
*Required for the automatic mist and smoke evacuation function

THUNDERBEAT HANDPIECES

TB-0545FCS THUNDERBEAT 5 mm, 45 cm, Front-actuated Grip Type S
TB-0535FCS THUNDERBEAT 5 mm, 35 cm, Front-actuated Grip Type S
TB-0520FCS THUNDERBEAT 5 mm, 20 cm, Front-actuated Grip Type S
