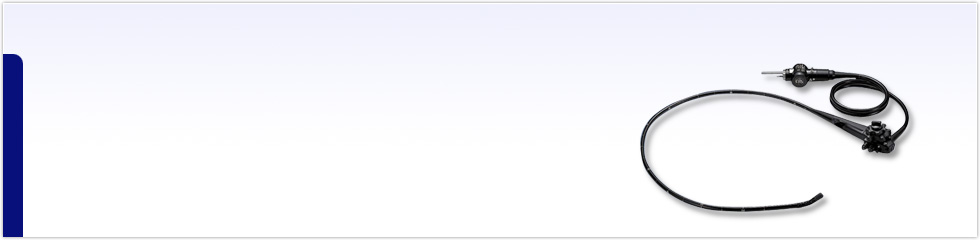

Video Duodenoscope

TJF-260V

  • NBI
TJF-260V

Contents start

Equipped with Olympus's innovative V-Groove forceps elevator, the revolutionary EVIS LUCERA DUODENOVIDEOSCOPE TJF-260V makes it possible to perform ERCP device replacement and manipulation with confidence and efficiency. The unique V-Groove on the forceps elevator securely locks the guidewire into position.

The revolutionary Olympus EVIS LUCERA DUODENOVIDEOSCOPE TJF-260V is equipped with Olympus's innovative V-Groove forceps elevator. This makes it possible to perform ERCP device replacement and manipulation with confidence and efficiency. The unique V-Groove on the forceps elevator securely locks the guidewire into position. Easier handling is ensured by the ergonomic design. The large 4.2 mm instrument channel offers users expanded treatment options in the bile and pancreatic ducts. The insertion tube measures 11.3 mm across with a distal end diameter of 13.5 mm offering a slim design for duodenoscopy.

  • Add to Watch List
  • Brochure

Large instrument channel

The large channel measuring 4.2mm across allows for expanded treatment options in the bile and pancreatic ducts.

Innovative design V-Groove forceps elevator

This allows raising at a sharper angle; its unique V-shaped guidewire locking groove joins the guidewire's reactive force to lock it in position.

Slim design

Measuring only 13.5 mm across at the distal end and 11.3 mm across at the insertion tube, this allows for excellent insertion capability.

Detachable distal cover

Being able to remove the distal cover allows for easier cleaning of the scope tip.

4-way angulation and wide field of view

A 4-way angulation (120° up, 90° down, 110° right, 90° left) facilitates an easier approach to the papilla of Vater.

Ergonomically designed grip for ease of use

The easy grip on the TJF-260V enhances torque performance and scope manoeuverability; in addition, the easy-to-access control knobs improve user operability.

Scope ID function for effective data capture

The scope ID function retains individual scope information in the memory chip and displays it on the monitor. It also stores settings, such as Automatic White Balance, to facilitate endoscopy suite management.

Optical System Field of view 100°
Direction of view 15° Backward oblique viewing
Depth of field 5 to 60 mm
Distal End Outer diameter 13.5 mm
Insertion Tube Outer diameter 11.3 mm
Bending Section Angulation range Up 120°, Down 90°, Right 110°, Left 90°
Working Length   1,240 mm
Total Length   1,550 mm
Instrumental Channel Inner diameter 4.2 mm
Minimum visible distance 10 mm from distal end
Laser Compatibility   NO
High-Frequency Compability   YES
Scope ID Function   YES
